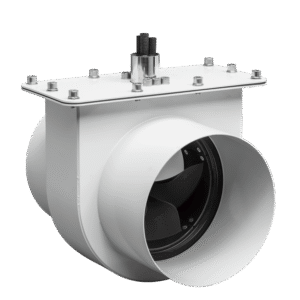

Bow thruster box 22.0

The bow thruster box is also available in stainless steel, aluminum, and HDPE.

With this bow thruster box, the motor can be easily removed from the box. The lid of the box must then be placed above the waterline, so it is not necessary to take the boat out of the water if you want to remove the motor from the box. Thanks to the standardised tunnels, the motor can be easily installed, ensuring that the bow thruster is watertight and sufficiently cooled. This bow thruster box can only be used with our standard thruster.

The price below is for the bow thruster box and the standard thruster together. The entire bow thruster package also includes a finger joystick, safety kit set and main power cable set. These accessories can be found on the website.

22.295,00

VAT excluded

Downloads

Bow thruster box 22.0

The bow thruster box is also available in stainless steel, aluminum, and HDPE.

With this bow thruster box, the motor can be easily removed from the box. The lid of the box must then be placed above the waterline, so it is not necessary to take the boat out of the water if you want to remove the motor from the box. Thanks to the standardised tunnels, the motor can be easily installed, ensuring that the bow thruster is watertight and sufficiently cooled. This bow thruster box can only be used with our standard thruster.

The price below is for the bow thruster box and the standard thruster together. The entire bow thruster package also includes a finger joystick, safety kit set and main power cable set. These accessories can be found on the website.

22.295,00

VAT excluded

Downloads

Product details

  • Product number: 300004885-3
  • Warranty terms: two years for non-commercial use and one year for commercial use
  • Delivery terms: ex works
  • Nominal current: 535A
  • Nominal voltage: 48V
  • Weight: 80kg
  • Propeller diameter: 290mm
  • Outside diameter: 424mm
  • Motor length: 183mm
  • IP Class: IP68
  • Static thrust: 265kgf
  • Salt water resistant: Yes
  • Motor controller included: Yes
  • Diameter box: 323.9mm
  • Material box: Stainless steel, glass fiber, aluminum, and HDPE.

What materials is the box available in?

The box is available in Stainless Steel, Glass Fiber, and Aluminium.

Which sizes are available?

From 2.5kW to 75kW.

Can you service wet conditions?

Yes, you can perform service activities in the water.

Can I adjust the height of the box?

Yes, the box can be adjusted to any desired height.
